StarTech.com 2 Port USB to RS232 RS422 RS485 Adapter
Product Code:
8STICUSB2324852
Pack Of
1
Subscribe

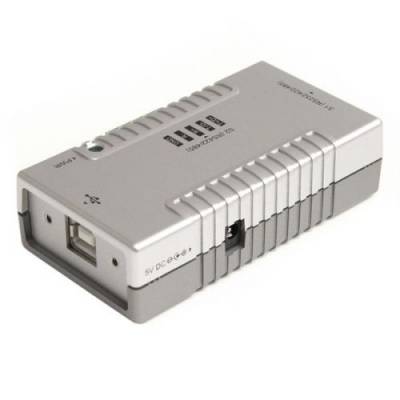

The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations.
For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- General
- The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations.
For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Type | External Computer Cables |
| Manufacturer | StarTech.com |
| Brand | StarTech.com |
| Form | Serial Cable Adapter |
| Colour | Grey |
| Weight | 300g |
| Dimensions | 23x44.2x82.3mm |
| Warranty | 2 Year Warranty |
| Connection | 1 x USB Type-A USB 2.0 Male |
| Connection 1 | USB Type-A |
| Connection 2 | USB 2.0 Male |
| Ability to rename devices for easy recognition |
| Backwards compatible with USB 1.1 |
| Both ports can function simultaneously with mixed or matched communication protocols |
| COM Port assignments maintained after reboot |
| Features rugged screw-lock USB port to ensure cords are not accidentally disconnected |

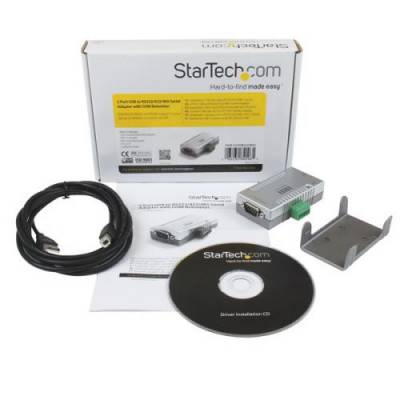

| Includes a bracket for wall mounting the USB to Serial adapter |
| Multiple interface modes, including: 4 wire RS422(TxD+/-, RxD+/-), and 2 wire RS485 (DATA+, DATA-) |
| Port 1 (DB9) configurable for RS232, RS422, or RS485; Port 2 (Terminal Block) configurable for RS422 or RS485 |
| Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA Hardware |
| USB-powered; No additional external power adapter required |
